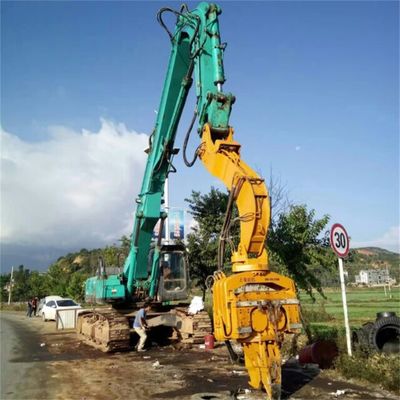

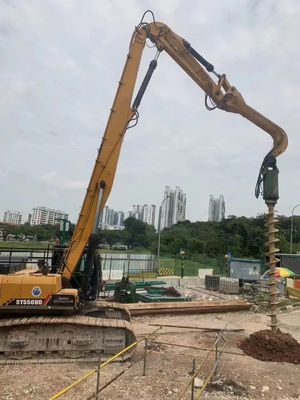

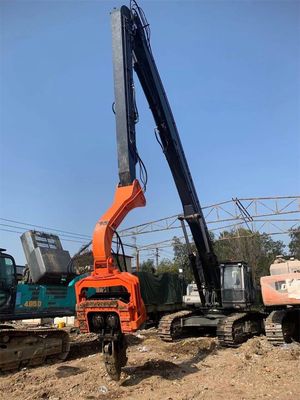

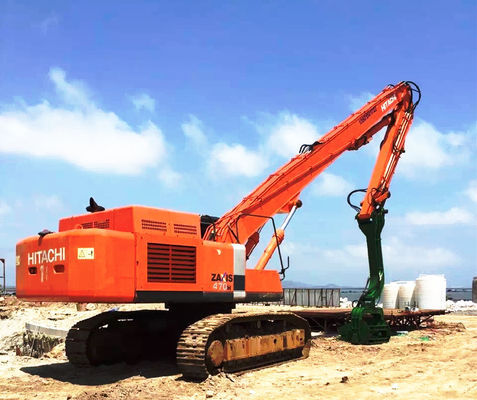

Versatility Excavator Pile Arm Pile Boom with Pile Hammer for Piling Driver Longer life-span
click here to have our PDF catalog: 2024 Zhonghe Machinery--Product Catalog.pdf
One set of excavator pile arm:

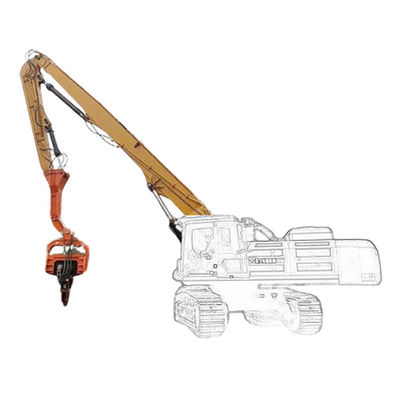

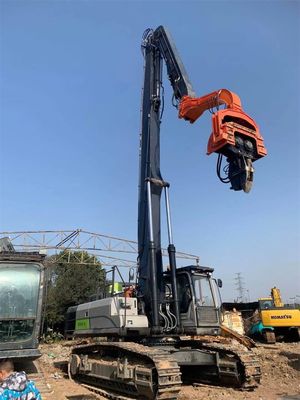

Enhanced Piling Capability
A larger piling angle allows the excavator's pile-driving arm to achieve greater heights. With the angle between the boom and arm reaching approximately 160°, this design enables the excavator to position piles higher than conventional models. This results in the ability to install taller piles effectively.
Extended Durability of the Excavator Pile Arm
The innovative design of the pile arm and boom enhances longevity. The structure features built-in transverse and vertical reinforcement ribs, significantly boosting the tensile strength of the pile arm.
Reduced Risk of Cracking
The arm is fortified with multi-layer reinforcing rib plates at critical stress points, ensuring a robust and integrated molding. Furthermore, the pipelines within the excavator's pile arm are crafted with high precision and seamless construction, contributing to its overall integrity.
Emphasis on Safety and Efficiency
Safety and operational efficiency are paramount. The back bushing of the arm is encased in a solid plate to prevent any risk of detachment, ensuring reliable performance during pile driving operations.
Key word: Excavator pile arm, excavator pile boom, excavator pilr diver, mini pile driving arm, etc.
Specifications of one set of pile arm pile boom:
| Excavator Model (ton) | Total Length (m) |
| 20-24T | 11-12m |
| 25-28 T | 12.5-13m |
| 30-38 T | 13.5m |
| 36-39 T | 15m |
| 40-47 T | 13-14.2m |
| 40-50T | 15-15.8m |
| 45-52T | 16.5-16.8m |
| 47-52T | 18-19m |
| 65-85T | 24m |
one set of excavator pile driving arm include: one big boom, three valves, high-pressure hoses, and other accessories.
Welcome to send your excavator model to us. Suitable length will be recommend according to your excavator model.
Production Advantages of the excavator pile arm:

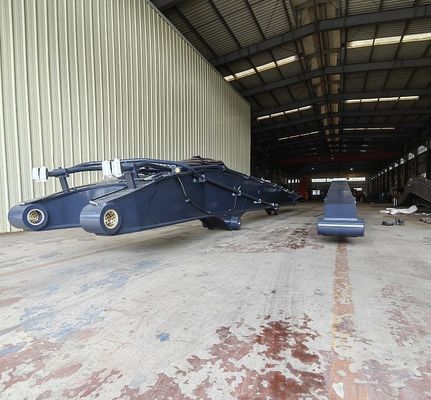

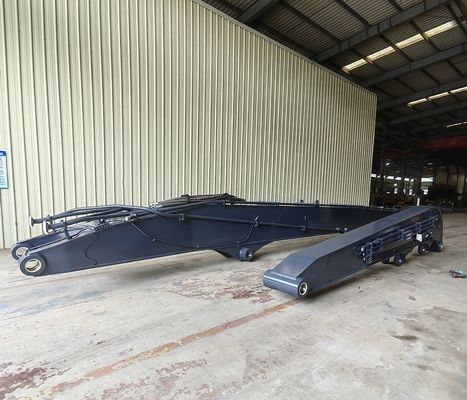

Production details:
