Durable Telescopic Arm for Excavators OEM Telescopic Boom for Excavator Excavator Boom Extensions

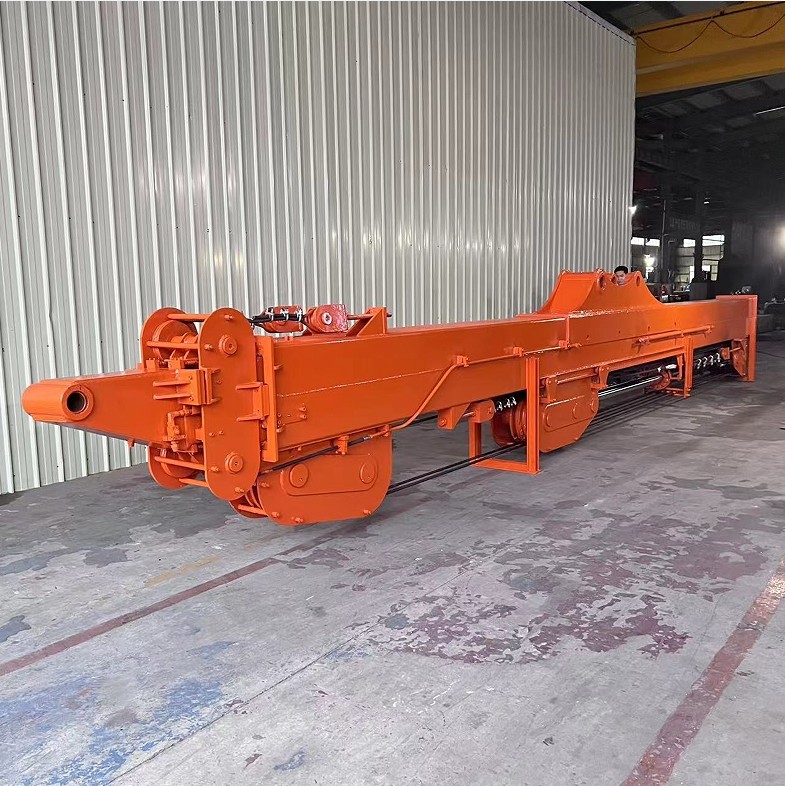

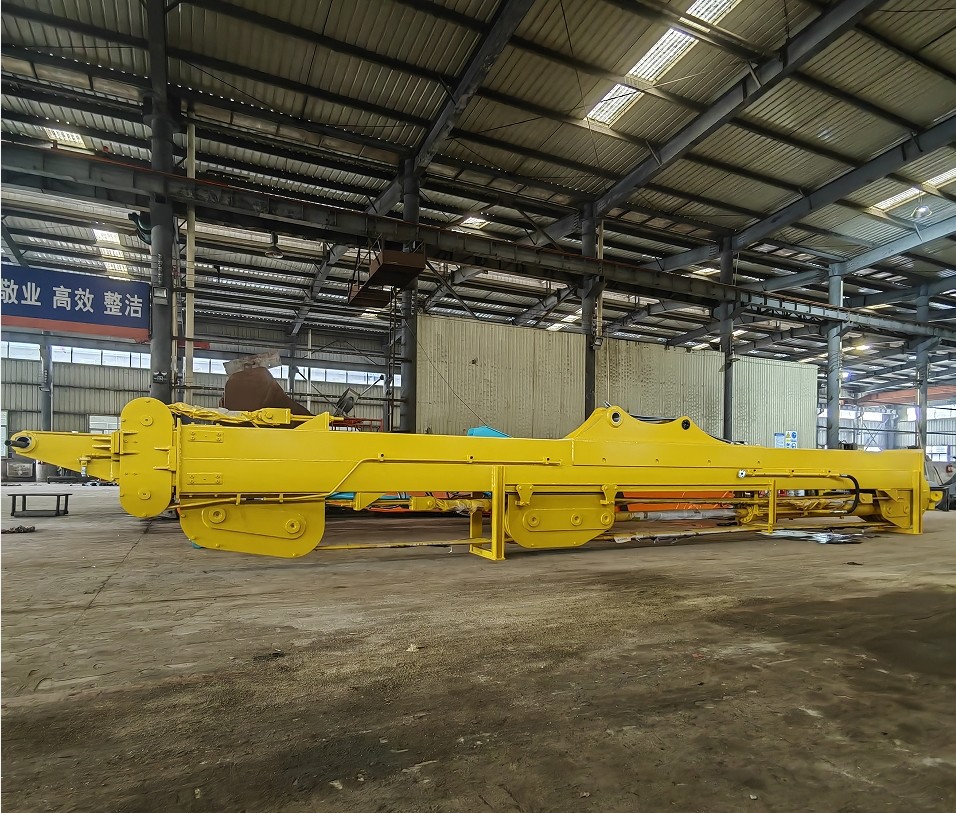

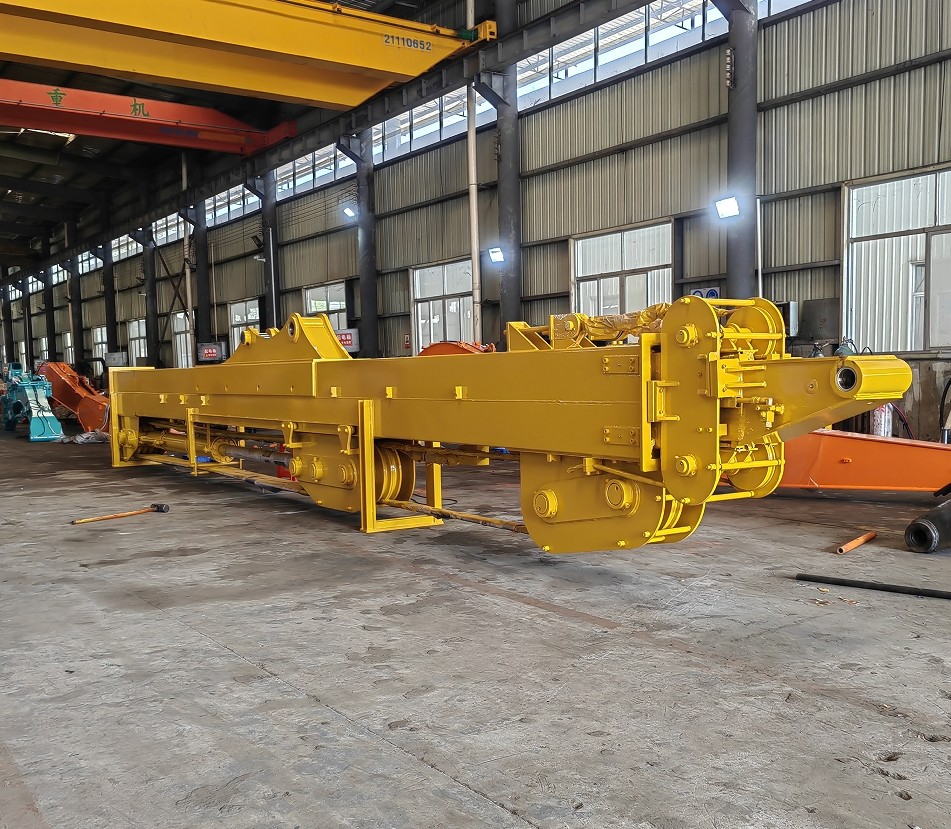

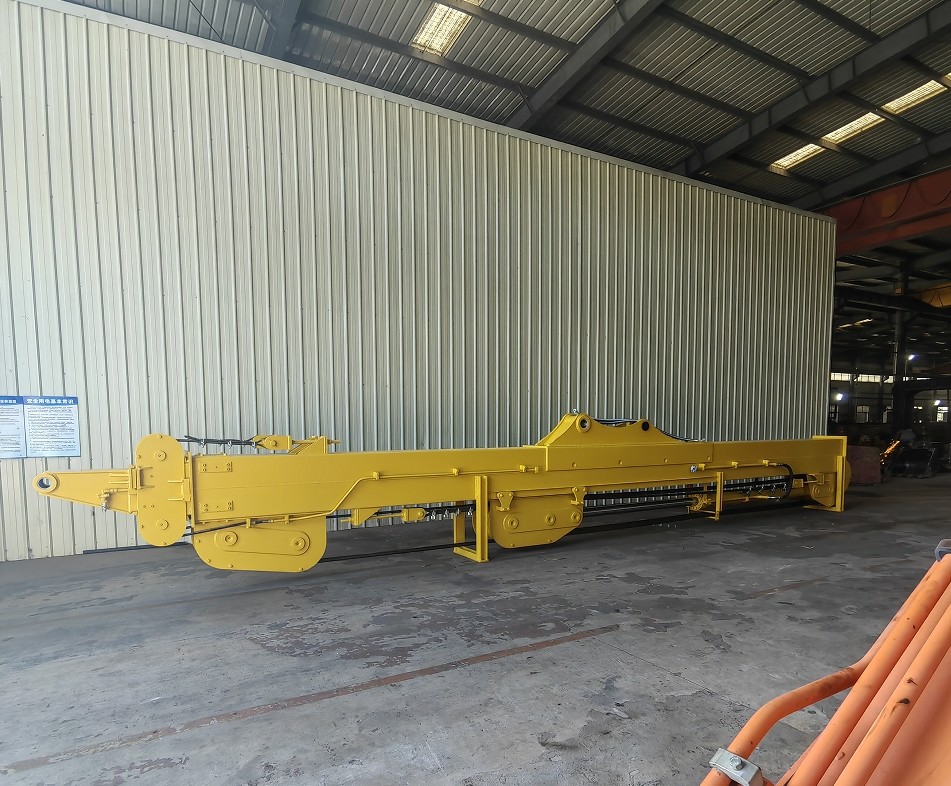

Product Description-------Excavator Telescopic Boom
What is an excavator telescopic arm?
The excavator telescopic arm is a dynamic tool designed to improve the efficiency of excavation work. Its adjustable length allows operators to adapt to different job requirements, whether digging, lifting, or demolishing in challenging environments.
What are your advantages?
Advantages of telescopic arms:
1. Made with BS900E and Q355B, the three-section telescopic boom is designed to be both lightweight and sturdy.
2. A thickness of 6mm contributes to its enhanced durability.
The use of nylon for sliders and steel for pulleys, combined with centralized hose lubrication, ensures smooth operation.
3. The bucket cylinder’s external hose pulley simplifies the process of hose maintenance.
4. This design effectively separates the hose from the main rope to minimize friction and damage risks.
5. Featuring a dual-rope system, the arm remains safe even if the main rope fails, preventing unintended extension.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Some common size references
|
Excavator (ton) |
Max Depth (mm) |
Effective Length (mm) |
Bucket Capacity (cbm)
|
| 6-10 | 10000 | 7600 | 0.2-0.3 |
| 11-15 | 14000 | 10500 | 0.4-0.6 |
| 20-30 | 16000 | 12500 | 0.8-1.5 |
| 30-35 | 20000 | 15500 | 1.3-1.66 |
| 30-35 | 25000 | 20500 | 1-1.4 |
| 40-45 | 25000 | 20500 | 1.8-2.5 |
| 40-45 | 30000 | 25100 | 1.4-2 |

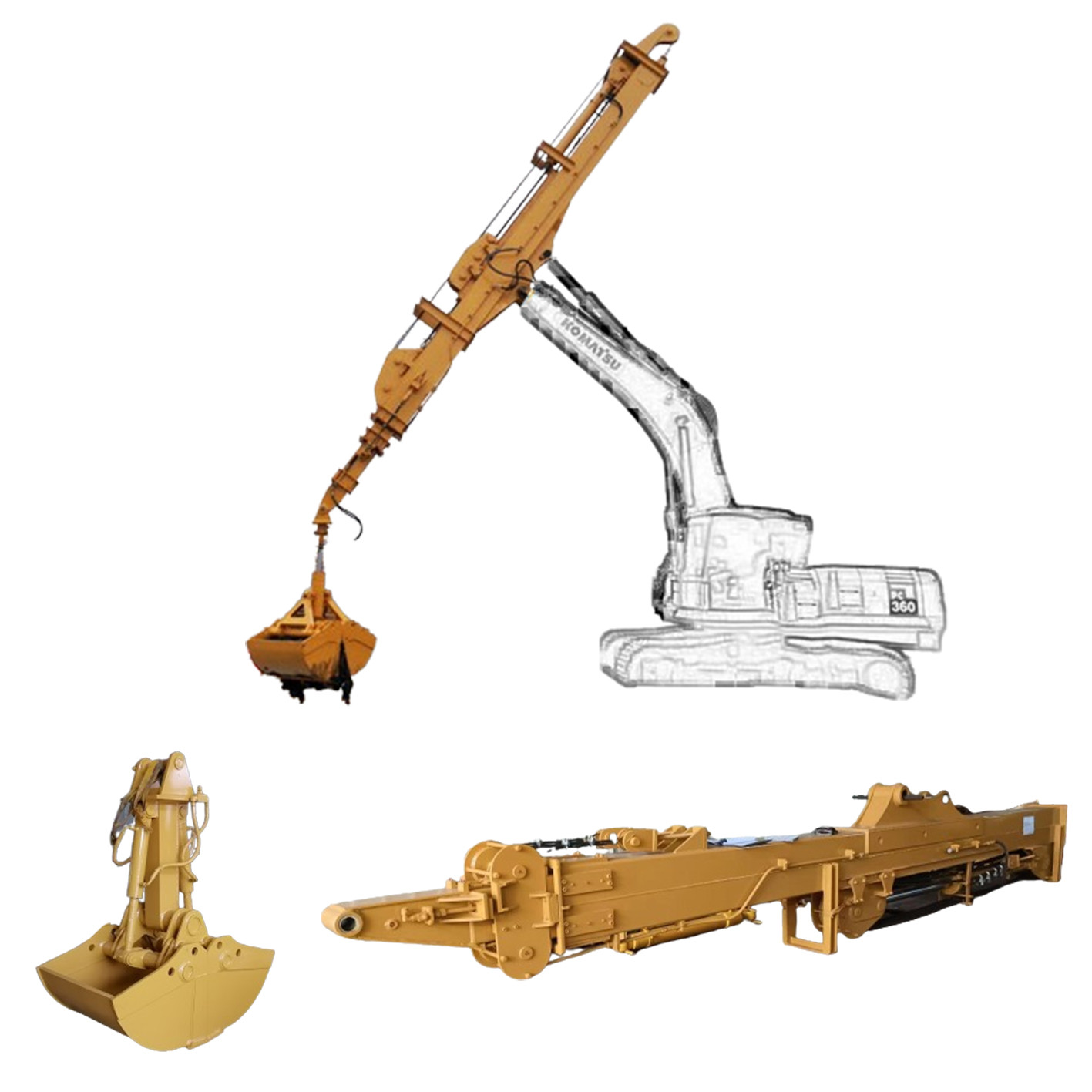

The telescopic arm of the excavator is suitable for the following working conditions:
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
What is the purpose of beveling the long boom arm plate?
Most welding machines commonly used in the industry have a penetration depth of only 3mm. Since the thickness of our long arm plate is at least 8mm, without beveling, the welder would not be able to fully penetrate through the entire joint. This would result in weak welds, leading to issues such as weld cracking in the future.
We employ mechanical beveling, whereas other factories rely on manual beveling (as shown in the figure).
Large Floor-Standing Double-Sided Boring and Milling Lathe:
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
About Zhonghe Machinery Company Profile:
Kaiping Zhonghe Machinery Manufacturing Co., Ltd.
1. Company Launch: Kaiping Zhonghe Machinery Co., Ltd. was established in 2018.
2. Business Focus: We specialize in the manufacturing and trading of customized excavator booms and attachments.
3. Facility Location: Our operations are based in Cuishan Lake New District, Kaiping City, Jiangmen, Guangdong Province, China.
4. Workshop Area: We operate a 21,000 m³ steel structure workshop dedicated to production.
5. Equipment Quality: Our facility is equipped with high-precision processing equipment.
6. Workforce Details: Our skilled team includes over 100 technicians, featuring:
7. R&D Focus: Our R&D team boasts over 10 years of customization expertise and more than 100 technical patents.
8. Production Standards: We adhere to a strict production system emphasizing quality and cost control, developed over 6 years.
9. Annual Output: We produce up to 800 sets of various types of excavator booms each year.
10. Client Relations: We value quality and customer satisfaction, inviting collaboration with clients worldwide.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
CE certification & Utility model patent certificates
Our products have been exported to over 60 countries, utilizing various transportation methods such as sea, land, and air freight. For packaging, we use either wooden crates or stretch film to secure the products. Before shipment, the goods are carefully packaged and then loaded into containers to ensure their safety during transit.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Packaging & Shipping
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ(Some frequently asked questions):
Q: Are you a manufacturer?
A: We are a manufacturer/supplier of excavator arms and attachments. We have a super large factory. The factory area is several times that of our competitors. It is the largest excavator attachment factory in Guangdong Province. It has complete production equipment and its products have been exported to more than 60 countries around the world.

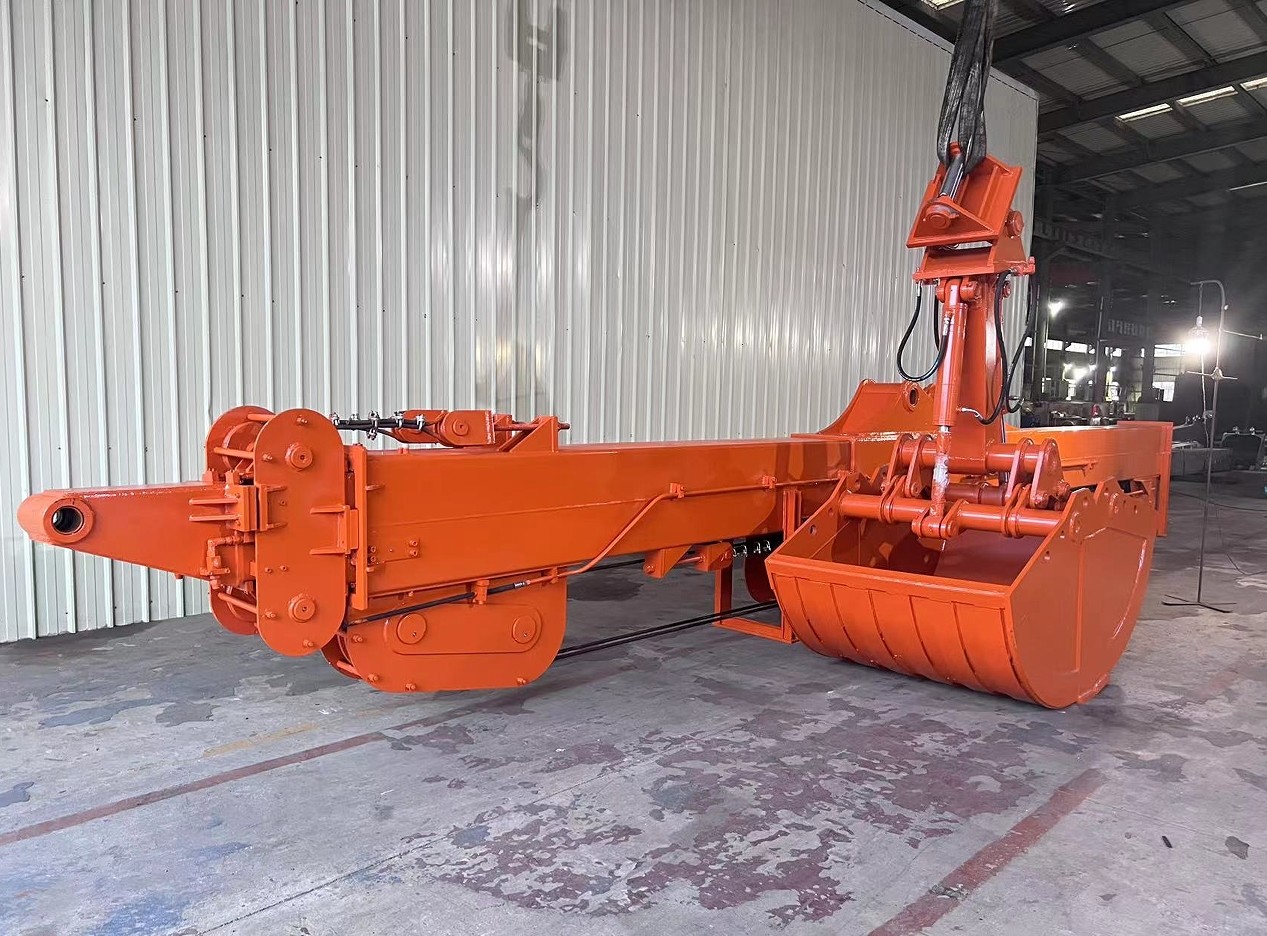

Q: Why does the telescopic arm have the difference between a shell bucket and a grab bucket?
